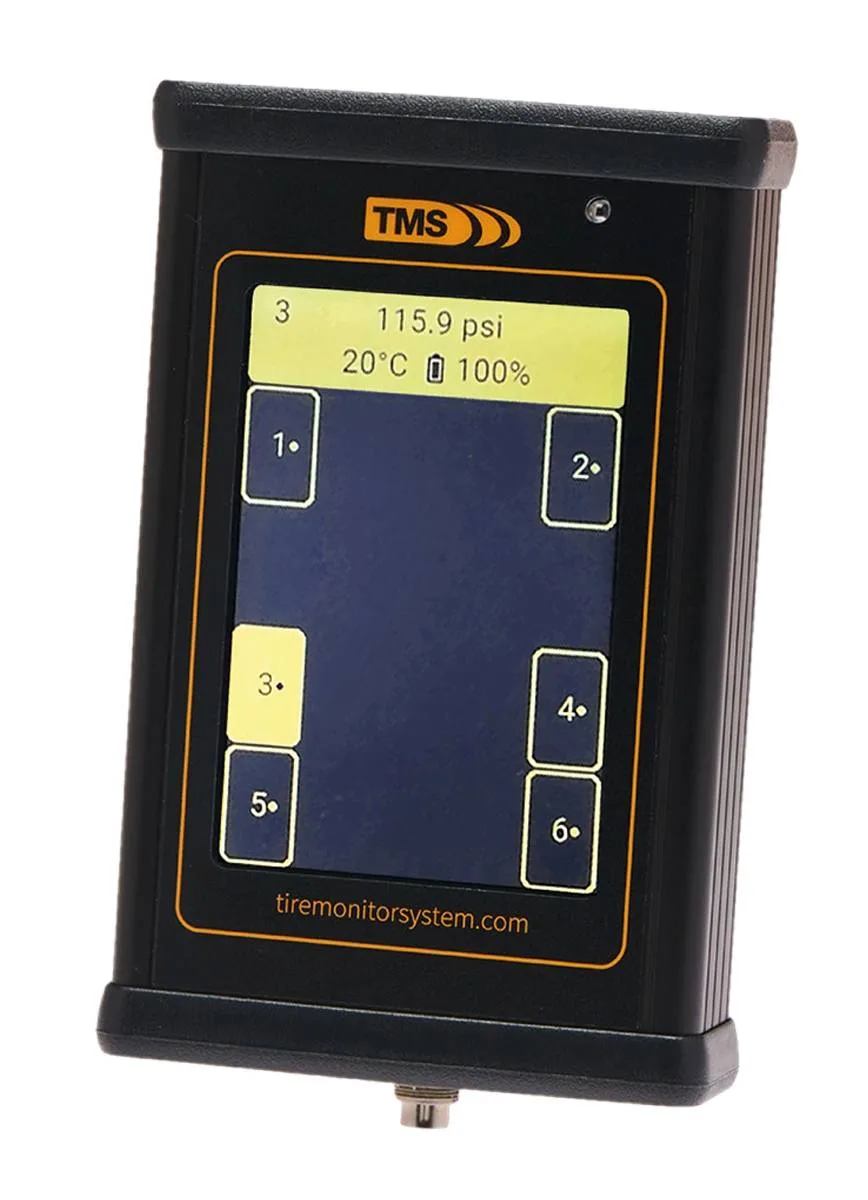

The fully re-designed Operator Interface (Display) is now much smaller, taking up even less cab space. Despite the small size, the Display has a significantly larger screen. Consequently, real-time tire data and alerts are more visible to the driver.
A quick press anywhere on the touchscreen gives the driver an instant overview of the pressures of all wheels (up to 24). Alternatively, it can display the full information on each individual tire.
Additionally, it can show the data for each tire including pressure, temperature, and Sensor battery charge.
Total flexibility is provided for the setting up of the alerts. The system has configurable alerts for the driver for all abnormal conditions or just for certain conditions. This includes alerts just for certain tires. There is an integral audible alert, which is also fully configurable.
Another key point. To cater for all ambient light conditions, the Display includes a light sensor and will automatically dim to suit the prevailing conditions.
The Operator Interface connects to the Hub via the supplied cable. So the Display can be installed in the best position to suit the driver.
Operator Interface Specifications
| Display: | Colour touch screen with auto-adjust for brightness |
| Power: | Directly from the NTMS Hub |
| Connection: | 3m cable from Hub to Display |
| Real-time clock: | To accurately time-stamp each alert |
| Alerts: | All configurable for low pressure, high pressure, high temperature, low sensor battery and reception timeout |
| Reset: | Alerts are cancelled by removing the fault condition |
| Configuration: | This is all completed via the free NTMS App |
| Audible: | Integral and fully configurable |
| Dimensions: | 125 x 80 x 30mm. Die-cast, powder-coated, aluminium case |
| Weight: | 220g |
| Operating range: | 0 to 80oC |
