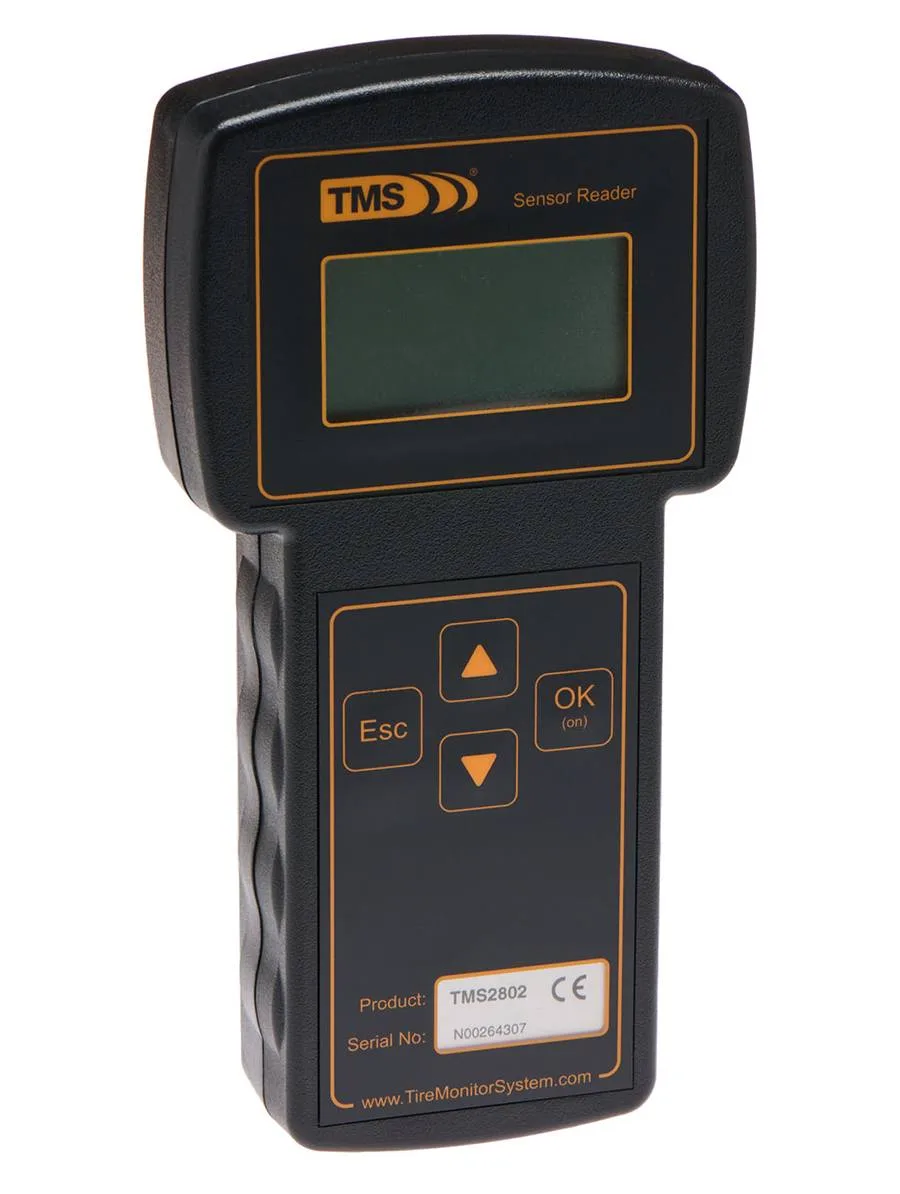

The handheld TMS® Sensor Reader (TMS28) activates compatible TMS® Sensors manually.
A low frequency activator initiates a data transmission and takes sensors out of hibernation mode.
Once activated, the internal or external sensor transmits its data. The TMS28 then displays the data on its screen: the sensor ID, pressure, temperature and battery.
A site that is using the TMS® products for the first time will need at least one Sensor Reader (TMS28). It is required for setup and diagnostic purposes. However, Sensor Readers are a maintenance tool. Therefore it is not necessary to have one per vehicle in your whole fleet. As such they do not come as part of the standard kit.
TMS® Sensor Reader Specifications
| Power: | Rechargeable with 18v PSU supplied |
| Display: | Backlit |
| Languages: | English, Spanish, Russian |
| Altitude: | Built in sensor to compensate for altitude |
| Pressure: | Displays pressure calculated at 18oC |
| Variants: | 433 or 315MHz frequencies |
| Compatibility: | Works with TMS2A, TMS23A and TMS24A |
| Recharging: | Fast recharge 1-2 hours |
| Design: | Robust enclosure |
